GN60- Aluminium Hybrid Trawler Yacht

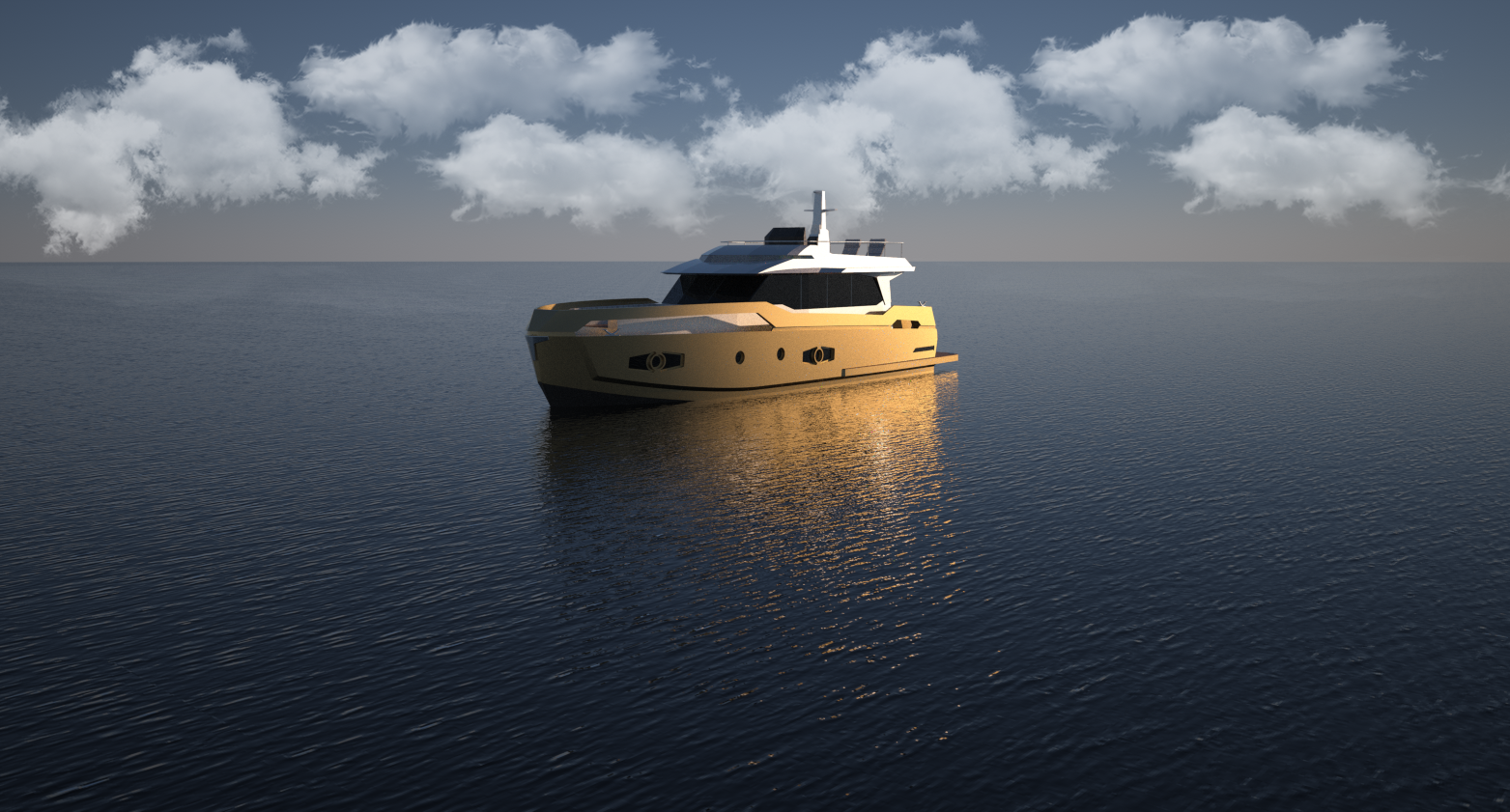

GN60 is an "aluminum hybrid trawler yacht" that offers high naval experience to yacht lovers.

Greenaval 60, is the longest model of our hybrid boats. This model has 2x 370 HP Volvo Penta diesel engines and 2x 150 kW electric motors. GN60, which offers 16knot cruise speed with diesel option can achieve 11,5knot cruise speed with electric motors.

Upper housing and shell manufactured from marine aluminum by highly experienced team,  provides higher performance and fuel saving in low-speed for GN60. GN60 allows 25mile free daily cruise range with one charge.

GN60, supplied with a specifically designed special aluminium tender, has 3 cabins two of which are full-beam master cabins. With offering separated crew cabin and bathroom, this hybrid boat's saloon provides 360-degree panoramic view. Crew cabin and the engine room can be reached from the inside of the saloon with stairs.

See the digital GN60 catalog

Dimensions
LOA: 18.0 m
Beam: 5.20 m
LWL: 15.60 m
Length on Deck: 16.0 m
Minimum Draft: 1.20 m
Maximum Draft: 1.30 m
Bridge Clearance: 5.60 m
Headroom: 2.15 m
Freeboard: 1.25 m
Dry Weight: 28000 kgs
Transom Height: 2.50 m
Max Load Capacity: 35000 kgs
Storage Capacity: 3

Engines
Drive Type: Transmisión directa
Cruising Speed: 7 knots
Maximum Speed: 11 knots
Range: 3000 nm

Engine Options
Engine Option 1: 2x 150 KW

Tanks
Fresh Water Tanks: 1 Aluminio (1000 Liters)
Fuel Tanks: 1 Aluminio (4000 Liters)
Holding Tanks: 1 Aluminio (900 Liters)
Water Heater Capacity: 1 Acero inoxidable

Accommodations
Number of single berths: 1
Number of twin berths: 2
Number of double berths: 2
Number of cabins: 4
Number of heads: 3
Number of bathrooms: 3
Seating Capacity: 14

Electronics
Radar
DVD player
Cockpit speakers
GPS
TV set
Depthsounder
Navigation center
CD player
Plotter
VCR
Radar Detector
Compass
Radio
Autopilot
Wind speed and direction
Computer
Battery: 18 kWh, 1500 Ah

Inside Equipment
Electric bilge pump
Fresh water maker
Bow thruster
Oven
Refrigerator
Dishwasher
Air conditioning
Battery charger
Sea water pump
Hot water
Washing machine
Stern thruster
Air compressor
Microwave oven
Deep freezer
Heating

Electrical Equipment
Inverter
Generator
Shore power inlet
Electrical Circuit: 12V

Outside Equipment/Extras
Cockpit table
Teak sidedecks
Swimming ladder
Gangway
Teak cockpit
Cockpit cushions
Liferaft
Outboard engine brackets
Cockpit shower
Solar panel
Hydraulic gangway
Tender
Molinete eléctrico

Covers
Bimini Top
